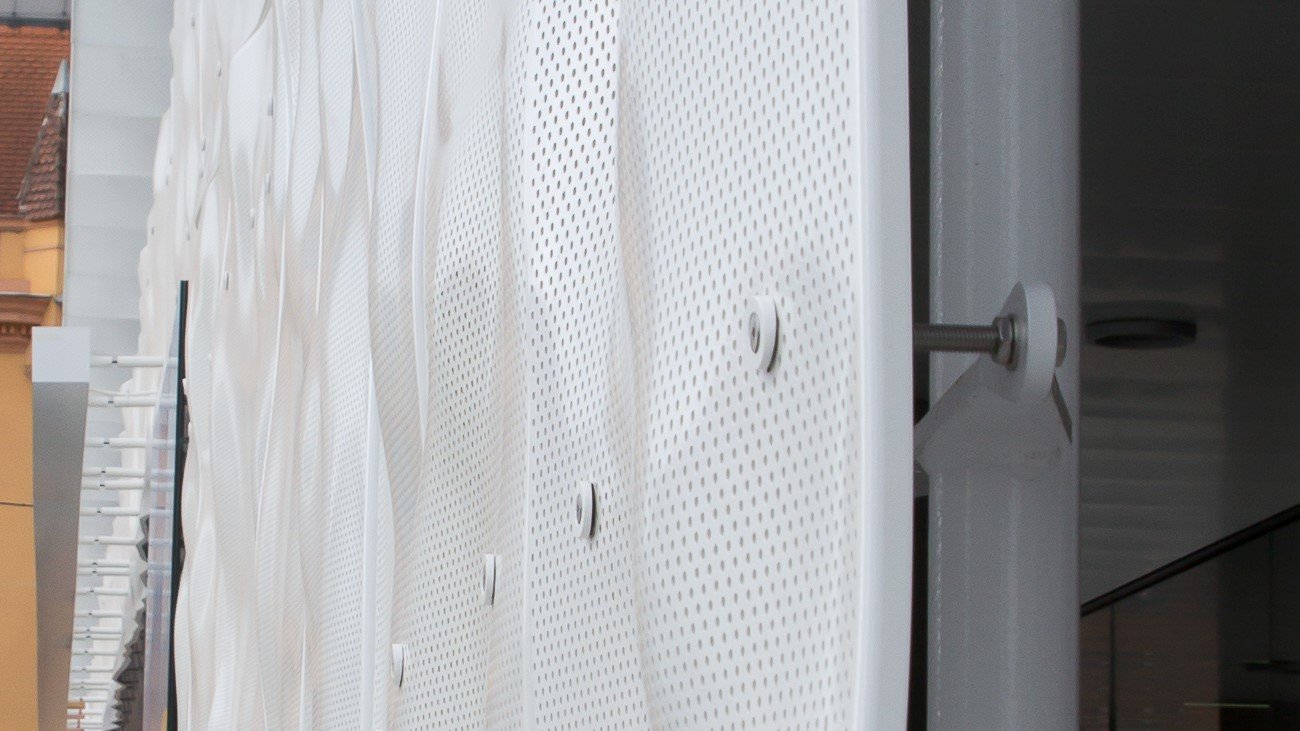

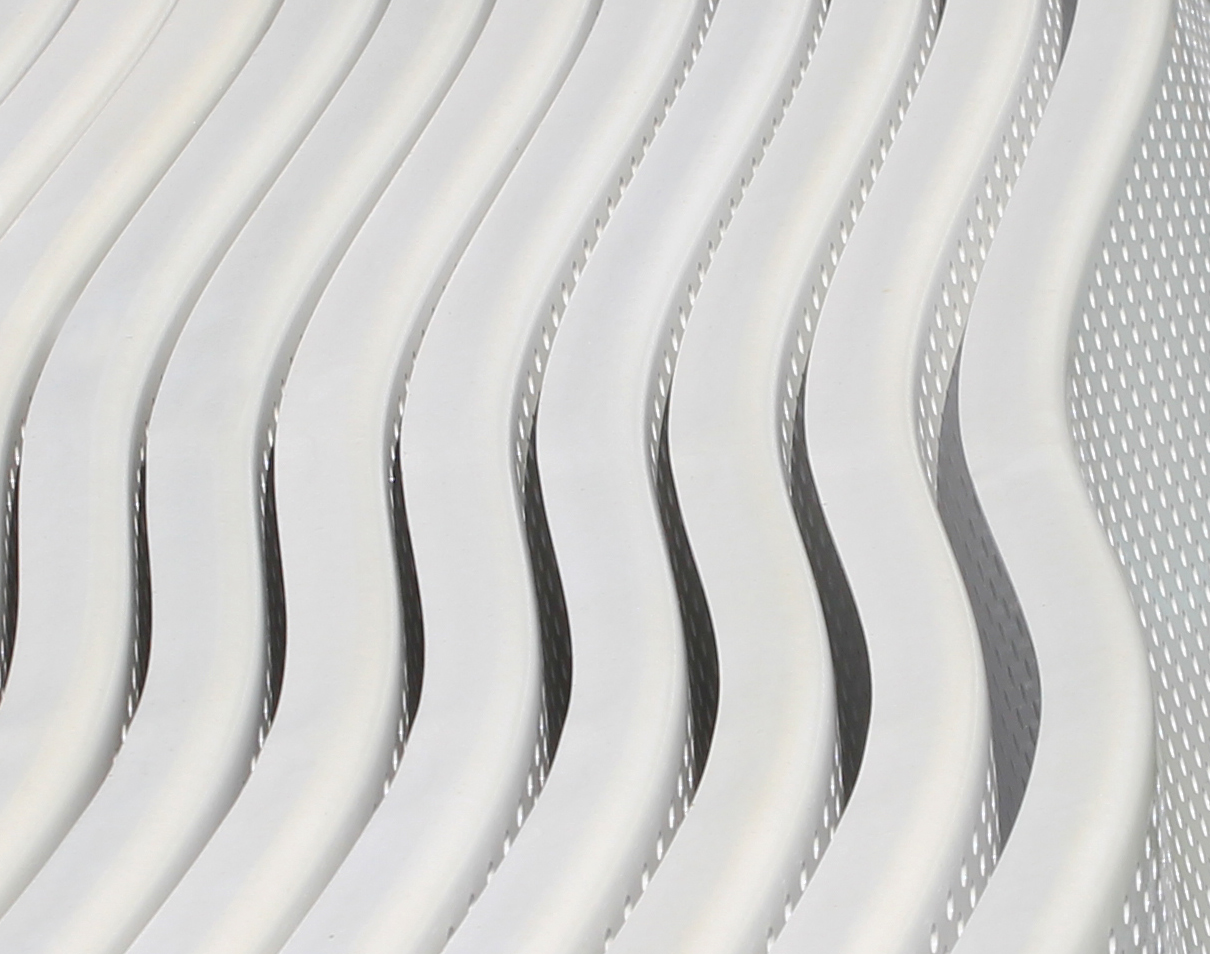

In close cooperation with the Zieser architects‘ office in Vienna, a three-dimensional dune landscape was created using perforated, 3 mm thick aluminum with a newly developed nacreous lacquer finish from HD Wahl. The individual, almost 3 m² large motor-powered sun protection slats surround the entire structure.
Despite the three-dimensional design, we were able to create harmonious fold-backs on all four sides which didn’t interrupt the continuity of the 3D dune landscape but rather contributed to their sustained cohesion.
The aluminum plates gain additional reinforcement through their three-dimensional design due to the fold-backs and their perforated surface renders them particularly effective acoustically.

Google Maps

Mit dem Laden der Karte akzeptieren Sie die Datenschutzerklärung von Google.
Mehr erfahren

Karte laden

Product: Düne St.Poelten
Material: Aluminum, t = 3.0 mm, perforation Rv 5.0 – 10.0 mm
Architecture: Zieser ZT GmbH, Wien
Surface finish: Durfalon coating by HD Wahl, Jettingen

3D Plates architecture
